What is Wi-Fi? 802.11 a/b/g/n/ac/ax/be Standards and Comparison

Small hardware parts sit inside a desktop computer case. Among them, a Wi-Fi card forms the base of wireless links.

Most users focus on the unseen link between router and PC. Yet the details hide in the PCIe slot, M.2 Key E slot, chipset design, power control, and thermal fixes.

When you finish this text, you will know which wireless network card to pick. Plus, you will see why Wi-Fi 7 is the future. You will also learn how to fix dropouts on the hardware side.

Choosing the right hardware matters significantly for gamers and office users. Wrong adapters create a real bottleneck. Also, old motherboards may not see new-gen modules. So we will cover key terms first.

In my tests, most people think a wireless network and the internet are the same thing. But these two work on fully different layers. On top of that, users often mix up signal strength and signal quality. A network can show -30 dBm signal strength. Yet packet loss may still make it run poorly.

So, without further delay, let us dive into the hardware basics of this tech. First, we will start with the definition and history. Then we will open up each part in your PC!

What Is Wi-Fi? Definition & Wireless Network Basics

Wi-Fi is the most common way to set up a wireless local area network. It relies on the IEEE 802.11 standards family. Wireless network devices send and receive radio waves according to set rules. These waves use 2.4 GHz, 5 GHz, and now 6 GHz bands.

Simply put, it is a set of protocols for wireless internet access. But that definition falls short.

You do not use Wi-Fi tech only for internet access. You also use it for file sharing and smart home control. So think of this concept more broadly.

Also, a fine line sits between Wi-Fi and the internet. A wireless network sets up the local structure for devices to link. The internet is the door to the outside world through this system. We will detail this split later.

Wi-Fi Meaning and Historical Context

In fact, the word Wi-Fi is not an acronym. The Wi-Fi Alliance picked this name to hint at “Wireless Fidelity.” Yet in the official word, this phrase holds no meaning. Still, people now use it to mean wireless connection.

In 1997, the Wi-Fi Alliance published the first IEEE 802.11 standard. Back then, data speed sat at only 2 Mbps. Then 802.11a and 802.11b arrived in 1999. These two standards opened the door to wireless networking.

Later, in 2003, the Wi-Fi Alliance released the 802.11g standard. In 2009 came 802.11n (Wi-Fi 4). In 2014, we saw 802.11ac (Wi-Fi 5).

The newest versions are 802.11ax (Wi-Fi 6/6E) and 802.11be (Wi-Fi 7). Each new standard brought real gains in bandwidth and delay.

Today, a wireless network no longer means just a web browser. Smart TVs, security cameras, game consoles, and IoT sensors stay linked to it. As a result, standards evolution also steers PC hardware makers.

The Difference Between a Wireless Network and the Internet

Many users mix up these two ideas. A wireless network links the devices in your home. The internet is a wide area network that joins this local network to the outside. So a wireless network works even without internet access.

For example, you can share files between your laptop and phone even with the modem off. This task runs fully on your local network. But to open a website, your internet service provider must be active.

Thus, the phrase “wireless internet” actually joins two layers. The lower layer is the wireless local network. The upper layer is the wide area network. Seeing these layers helps you fix hardware issues.

Also, you can reach the internet by Ethernet cable or mobile data. In that case, you connect online without a wireless network. So Wi-Fi is only an access method, not the internet itself.

Why Wi-Fi Matters in Daily Life

Nearly every home now has at least one wireless access point. Smartphones, tablets, laptops, and smart home devices all want a constant link. So coverage area and signal quality directly shape your comfort.

Moreover, remote work became the norm after the pandemic. People join video calls, download big files, and use cloud apps. All of this needs a steady wireless network.

Wireless mice also show up often in office setups. Low delay stands out, mainly in games. You have likely seen cheap models where the cursor lags.

Wireless printers also join your home network. This way, you can print from any room. Here is a simple case: you send a print job from your laptop to the kitchen printer.

Low delay is vital for gamers above all. A one-second dropout can cost an online match. So picking the right wireless card is now a need, not a luxury. Even casual users face this.

On the flip side, smart home systems, sensor nets, and wireless cameras push data nonstop. When all these devices link at once, they test your network capacity. That is where your chipset and driver support step in.

How Does Wi-Fi Work? Radio Frequency and Data Transmission

Radio wave communication sits at the core of this tech. We encode data in a set frequency band and send it through the air. The receiving device then decodes these waves into digital signals. This is how wireless data flows.

But many more details live inside. Many devices can broadcast on the same frequency at once. This causes collisions. That is where access control protocols step in.

Also, signal quality stands apart from signal strength. A strong signal may still run poorly due to high noise. So the signal-to-noise ratio (SNR) matters a great deal.

Now let us examine the layers of this process one by one. First, we will grasp the nature of radio waves. Then we will dig into data protocols and their hardware effects.

Radio Waves and the Electromagnetic Spectrum

Radio waves sit in the low-frequency part of the electromagnetic spectrum. These waves move at light speed. Their frequency is far lower than visible light. As a result, they pass through walls, bounce off surfaces, or get absorbed by objects.

Infrared communication also sits in the electromagnetic spectrum. But it is not as common as Wi-Fi. Old devices used it for remote controls. Here is the key point: as frequency rises, range shrinks.

Wi-Fi devices normally use unlicensed frequencies known as the ISM band. 2.4 GHz, 5 GHz, and 6 GHz lead the pack. Plus, the 802.11ah standard also supports lower frequencies like 900 MHz.

Lower frequency boosts range but cuts data speed. Higher frequency shortens range yet grows bandwidth. This basic physics rule directly shapes wireless card antenna design.

Furthermore, when an electromagnetic wave hits obstacles, three things occur: reflection, diffraction, and absorption. Concrete walls soak up most of the signal. Metal surfaces reflect the wave. These effects drive signal loss calculations.

CSMA/CA Protocol and PHY/MAC Layers

Data transmission in wireless networks happens across two main OSI model layers. The PHY layer handles physical signal processing. The MAC layer controls access. These layers sit inside the wireless network card hardware.

Wired networks use CSMA/CD to prevent collisions. But in a wireless space, detecting signal crashes is hard. At this point, the CSMA/CA protocol steps in. A device first listens, then speaks.

With CSMA/CA, a device checks if the channel is free before sending. It transmits if the channel is clear. If busy, it waits for a random time. This method cuts collision odds but does not remove them fully.

Also, half-duplex communication applies here. A device cannot send and receive at the same time. This raises delay times. Wait times grow especially in crowded networks.

However, modern chipsets ease this problem. OFDMA and MU-MIMO let multiple devices communicate at once. Devices use airtime far better this way.

Modulation Techniques: QAM, OFDM, and Channel Bonding

We use modulation to load data onto radio waves. QAM is one of the simplest methods. QAM changes both the signal’s amplitude and phase. This way, we carry more bits per symbol.

For instance, 1024-QAM carries 10 bits per symbol. Wi-Fi 7 uses 4096-QAM instead. That means 12 bits per symbol. But high modulation levels need a clean signal. Receiver sensitivity in the hardware matters significantly here.

OFDM, however, splits data across many subcarriers. Each subcarrier runs at low speed. This cuts the impact of frequency-selective fading. OFDMA assigns these subcarriers to different users.

Channel bonding joins multiple 20 MHz channels into one. Widths of 40 MHz, 80 MHz, and 160 MHz are common. Wi-Fi 7 also supports 320 MHz channel width. This multiplies the theoretical speed.

Wi-Fi Frequencies and Bandwidth: 2.4 GHz, 5 GHz, and 6 GHz

Frequency band choice is one of the most critical factors for wireless hardware performance. Each band has its own pros and cons. So pick the right band for your use case and PC hardware.

The 2.4 GHz band offers wide coverage but is crowded. 5 GHz is faster yet struggles through walls. 6 GHz is fairly new and empty. But its range is the shortest.

Also, dual-band routers offer 2.4 GHz and 5 GHz at the same time. Tri-band systems add an extra 5 GHz or 6 GHz radio. This way, you spread devices across different bands.

Now let us compare these bands in depth. Next, we will move on to channel selection.

2.4 GHz or 5 GHz? Detailed Comparison

The 2.4 GHz band passes through walls more easily due to its low frequency. It may be enough alone in large homes. But this band only has three non-overlapping channels. As a result, interference from neighbor networks is unavoidable.

5 GHz offers far more channels, however. Channel overlap drops as a result. It also delivers higher bandwidth and lower delay. Yet signal strength fades fast through walls.

For example, pick 5 GHz for gaming. Low latency is crucial there. 5 GHz also suits video streaming and file downloads. Smart home sensors work fine on 2.4 GHz.

6 GHz Band: Pros and Cons

The 6 GHz band entered our lives with Wi-Fi 6E. Only new-gen devices use this band. So interference from old devices sits near zero. It also offers very wide channel choices.

6 GHz has 14 channels at 80 MHz or 7 at 160 MHz. This gives you a clean link even in crowded networks. Plus, 320 MHz channel width works on this band with Wi-Fi 7.

However, walls absorb 6 GHz signals very easily. Even one wall cuts signal strength significantly. So you may need a range extender or mesh topology.

On the other hand, 6 GHz skips DFS channels. That means no radar-detection wait time. Link setup happens faster. This is clear on laptops with M.2 Wi-Fi modules in particular.

Channel Selection and Channel Overlap: Why 1, 6, 11 Matter

In the 2.4 GHz band, channels sit 5 MHz apart. But each channel spans 20 MHz. Plus, neighboring channels overlap each other. The only non-overlapping combo is channels 1, 6, and 11.

If all your neighbors use channel 1, switch to 6 or 11. Channel overlap drops significantly this way. Manual channel setting often beats auto selection.

5 GHz offers more channels, though. Still, you may face overlap in dense apartment blocks. So a spectrum scan helps. You can use wireless site survey tools for this.

Channel bonding also matters, of course. We do not suggest 40 MHz bonding on 2.4 GHz. The already low channel count shrinks further. 80 MHz or 160 MHz bonding brings gains on 5 GHz and 6 GHz.

Wi-Fi Standards: 802.11 a/b/g/n/ac/ax/be Compared

Wireless network standards keep evolving. Each new version brings speed, capacity, and efficiency gains. So standard compatibility matters significantly when you pick an adapter for your PC.

We will go through all major standards in order in this section. We will lay out each one’s technical details, pros, and weak points. This will clarify which generation fits your hardware.

Keep in mind, backward compatibility always exists. A new router works with an old adapter. But in this case, the system drops to the lowest common level.

802.11a and 802.11b: The Birth of Wi-Fi (1999)

802.11b is the first popular standard to run on 2.4 GHz. Its max theoretical speed was 11 Mbps. That speed felt quite good back then. By today’s standards, though, it is very slow.

802.11a is the first standard to use 5 GHz. It also offered 54 Mbps theoretical speed. But hardware costs ran high. It never really caught on with home users.

Both standards are fully out of use today. Still, many modern wireless cards support them. Backward compatibility drives this.

Their biggest legacy lies in laying the base for CSMA/CA. They also took the first steps in network security.

802.11g: Speed Boost on 2.4 GHz (2003)

802.11g delivers 54 Mbps on 2.4 GHz. This standard works fully with 802.11b. Old devices connect to new networks with ease as a result.

However, interference became a big problem in the 802.11g era. Microwaves and cordless phones share 2.4 GHz. This cuts signal quality.

On the bright side, 802.11g brought OFDM to 2.4 GHz. This method enables better data flow. Still, no one makes these today.

This standard, common on old laptops, often caused slow networks. Even one 802.11g adapter can slow the whole network.

802.11n (Wi-Fi 4): MIMO and the Dual-Band Revolution (2009)

802.11n brought a revolutionary leap to wireless networking. It supported MIMO for the first time. MIMO uses multiple antennas to multiply data streams. Speed and range grew together as a result.

802.11n also supports both 2.4 GHz and 5 GHz bands. This popularized the dual-band concept. Channel bonding made 40 MHz width usable.

Theoretical speed hits 600 Mbps with four spatial streams. In the real world, though, we rarely see that number. It was still a huge step forward at the time.

802.11ac (Wi-Fi 5): 5 GHz and MU-MIMO (2014)

802.11ac runs only on 5 GHz. 2.4 GHz support exists just for backward compatibility. This standard pushed wireless speeds to gigabit levels.

MU-MIMO stood out as a key new feature. This tech lets a router send data to multiple devices at once. Older routers communicated one at a time.

802.11ac Wave 2 added 160 MHz channel width and more spatial streams. Theoretical speed goes up to 6.9 Gbps. In practice, though, most PC hardware cannot reach that.

Many homes still use Wi-Fi 5 routers today. These devices cover most basic needs. But they may fall short in crowded networks.

802.11ax (Wi-Fi 6 and 6E): OFDMA and 6 GHz (2019/2021)

Wi-Fi 6 targets dense spaces above all. OFDMA lets you split one channel among many users. Airtime becomes far more efficient.

BSS Coloring cuts interference from nearby networks. Performance improves in crowded places like apartments. Target Wake Time (TWT) also saves battery. This matters for laptops.

Wi-Fi 6E extends this standard into 6 GHz. The new band offers clean spectrum and wide channels. But hardware support is a must. The M.2 slot on your motherboard must match.

Wi-Fi 6 has a theoretical speed of 9.6 Gbps. Real-world speeds land around 1–2 Gbps. Still, delay times drop clearly. That is why gamers do well with a PCIe-compatible Wi-Fi card.

802.11be (Wi-Fi 7): MLO, 320 MHz, and 4096-QAM (2024)

Wi-Fi 7 is the newest version in wireless networking. Three key upgrades stand out: MLO, 320 MHz channels, and 4096-QAM. This mix pushes theoretical speed to 46 Gbps.

MLO (Multi-Link Operation) lets a device send data on multiple bands at once. You can use 2.4 GHz and 5 GHz together, for example. This boosts both speed and stability. The modern Intel BE200 chipset supports this feature.

320 MHz channel width only works on 6 GHz. 4096-QAM also packs more bits per symbol. Data flow rate rises a great deal as a result.

The Wi-Fi Alliance officially announced Wi-Fi 7 in 2024. By 2025, high-end routers and adapters spread widely. In 2026, it began reaching mid-range gear. So we suggest a Wi-Fi 7-ready motherboard or PCIe card for desktop builders.

Full Wi-Fi Standards Comparison Table

Wi-Fi Hardware Components: Adapters, Routers, Access Points, and Antennas

A wireless network setup includes multiple hardware parts. Each part has a different job. All must work well together, though. The wireless card inside your PC needs proper fit with the motherboard and power supply.

The wireless network card lets your device send and receive radio signals. A router directs network traffic. An access point extends wireless coverage. Antennas shape the signal’s direction and power.

Now let us look at these parts one by one. We will also see how chipset design affects PC performance.

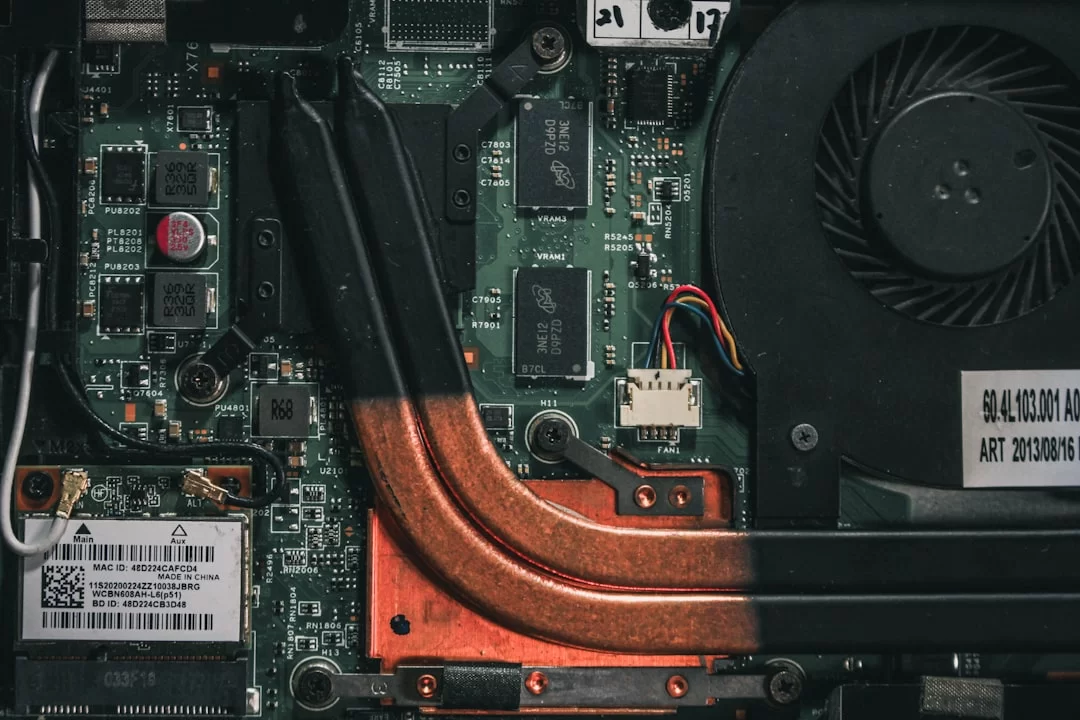

Wireless Network Card (WLAN Card) and Chipset Architecture

A wireless network card links your device to a wireless network. Desktops use PCIe, M.2, or USB form factors. Laptops normally use the M.2 Key E slot. This slot sits on the motherboard for this purpose.

The chipset is the heart of these cards. Intel, Qualcomm, Broadcom, MediaTek, and Realtek lead the market. Each chipset offers different driver support and performance. This directly shapes your PC’s overall network speed.

For instance, Intel AX200 is a popular Wi-Fi 6 chipset. Intel BE200 targets Wi-Fi 7. Qualcomm FastConnect is common in mobile devices. MediaTek Filogic is a strong mid-range pick.

Chipset design also drives power use and heat control. Some USB adapters overheat. This causes speed drops from thermal throttling. Some motherboards use CNVi, which only works with certain Intel chips.

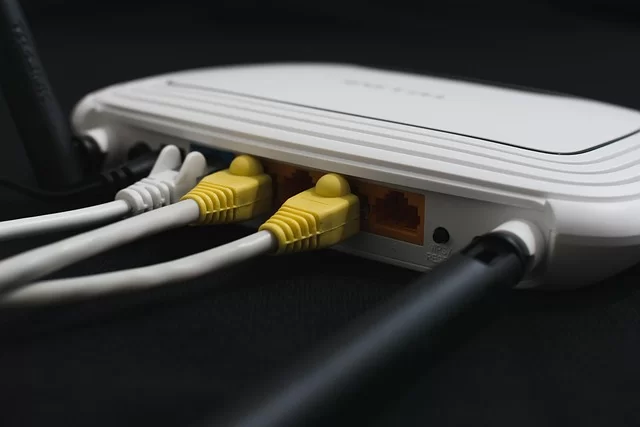

Router, Modem, and Access Point: The Differences

A modem converts the signal from your internet service provider. A router then shares that connection with local devices. An access point extends wireless access as a separate device. These three devices serve different roles.

Most homes combine a modem and router in one box. Corporate setups split these functions, however. An access point also adds wireless to a wired network. You widen coverage this way.

A router also handles QoS bandwidth control. It works as a firewall too. An access point only broadcasts the signal. Knowing these splits helps you pick the right hardware.

Some modern systems use multiple access points with a network switch. This widens coverage in large homes or offices. Ethernet backhaul also gives the most stable result.

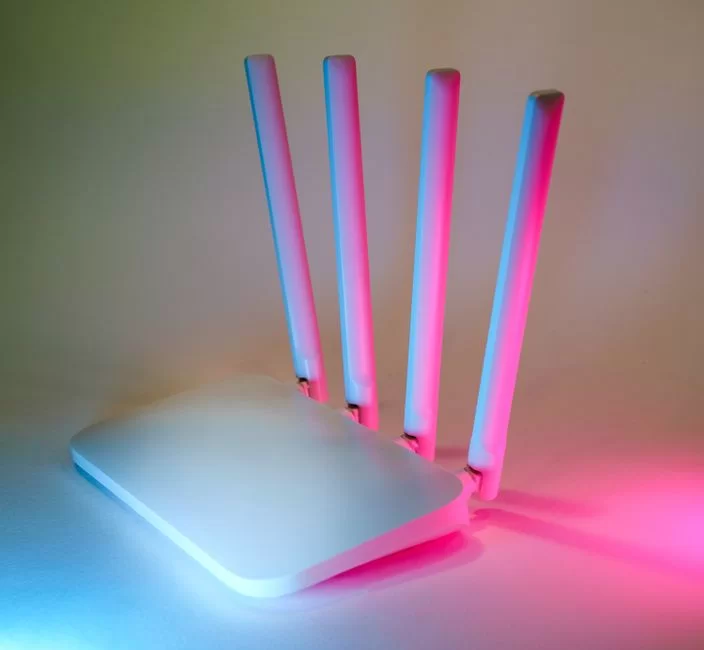

Antennas, dBi Gain, and Beamforming

An antenna broadcasts and collects radio waves. You measure antenna gain in dBi. A higher dBi value means a more focused signal. But that does not always mean better coverage.

An omnidirectional antenna sends signal equally in all directions. A directional antenna focuses on one direction. Home users do well with omnidirectional antennas. Desktops can use PCIe cards with external antennas.

Beamforming tech focuses the signal toward the client device. Range and speed both improve as a result. With MU-MIMO, multi-user support grows stronger.

You also use U.FL or IPEX connectors for antennas. External antenna adapters usually get better signal. Built-in antenna models look nicer, though. Laptop users feel this difference directly.

Wi-Fi 6, 6E, and Wi-Fi 7: New-Gen Hardware Requirements

To use new-gen standards, both router and client device must match. Otherwise, the system drops to the oldest standard. So a hardware compatibility check is a must. Do not overlook motherboard BIOS settings and M.2 slot support.

Wi-Fi 6 uses the current 2.4 GHz and 5 GHz bands. Wi-Fi 6E adds 6 GHz. But, Wi-Fi 7 joins all bands via MLO. Each generation brings different needs for PC hardware.

Now let us look at hardware gaps and needs between these standards.

Wi-Fi 6E vs Wi-Fi 7: The Differences

Wi-Fi 6E builds on Wi-Fi 6 hardware. It adds 6 GHz band support. The chipset design stays mostly the same. You just add a new radio module.

Wi-Fi 7 is a brand-new generation, however. MLO stands as the clearest difference. It also supports 320 MHz channels and 4096-QAM. These features need different chipsets at the hardware level.

Wi-Fi 6E devices perform well on current networks. But they lack Wi-Fi 7’s multi-band simultaneous talk. That gives Wi-Fi 7 the edge in crowded spaces.

Wi-Fi 7 Hardware and Motherboard Support

First, you need a Wi-Fi 7 router to use this standard. Your client device also needs a Wi-Fi 7 adapter. New features turn on when both sides match.

For desktops, pick a PCIe Wi-Fi card. These cards usually hold an M.2 Key E module on an adapter. In short, you convert the M.2 module to a PCIe interface. This conversion does not hurt card performance.

You are lucky if your motherboard has an M.2 Key E slot. Otherwise, use an adapter card that takes a PCIe x1 lane. Motherboard BIOS settings may not see these cards at times. You may need to remove a BIOS whitelist block.

Wi-Fi 7 phones and laptops have also hit the market. These devices mostly use Qualcomm FastConnect or Intel BE200 chipsets. For desktop users, an M.2 module plus PCIe adapter is the most common fix.

Wi-Fi 7 Compatible Devices and Adapters in the US

As of 2026, many Wi-Fi 7 routers are on sale in the US market. Asus, TP-Link, Netgear, and Xiaomi lead the pack. Prices start at $150 and go up to $900.

On the adapter side, Intel BE200-based cards have spread widely. Qualcomm-based USB adapters are also available. But USB adapters are not as stable as PCIe models. Still, they work well for laptop users.

For desktop users, TP-Link Archer TBE550E and Asus PCE-BE92BT stand out. These cards offer tri-band simultaneous operation. Prices range from $90 to $900.

• Asus ROG Rapture GT-BE98
• TP-Link Archer BE900
• Netgear Nighthawk RS700S
• Xiaomi Router BE7000
• Asus PCE-BE92BT adapter
• TP-Link Archer TBE550E adapter

Wi-Fi Card Selection for Desktops and Laptops: PCIe, M.2, USB

Picking the right adapter forms the base of your wireless experience. A wrong form factor or chipset creates a bottleneck. Heat and power issues may also show up. We will clarify the best fix for you in this section.

Desktops have three main choices: PCIe card, M.2 module, or USB adapter. Laptops usually let you swap the M.2 module. Now let us compare these options.

PCIe Wi-Fi Card or USB Adapter?

You plug a PCIe Wi-Fi card straight into the motherboard. It also offers PCIe x1 lane bandwidth. This gives you high speed and low delay. External antennas also boost signal pickup.

A USB Wi-Fi adapter offers portability. However, the USB 3.2 Gen 1 bandwidth cap sometimes creates a bottleneck. Small adapters also suffer from heat. This causes speed drops via thermal throttling.

For gaming and heavy use, I firmly suggest a PCIe card. USB adapters suit temporary fixes or laptops. Replacing the built-in card on a laptop is better, though. That swap often takes just a few minutes.

M.2 Key E Slot and the BIOS Whitelist Problem

Manufacturers designed the M.2 Key E slot for wireless modules. Laptops and some desktop motherboards include this slot. Do not confuse it with an M.2 NVMe slot for Wi-Fi. SSDs use a different key shape, after all.

Some makers, mainly Lenovo and HP, enforce a BIOS whitelist. That means you can install only approved cards. If you fit a different card, the system may not boot.

You may need a modded BIOS to lift this whitelist block. But this step carries risk. It may void your warranty. So check the maker’s support page first.

When fitting an M.2 module, use U.FL or IPEX antenna connectors. These connectors are very delicate. They can break if you force them. Also, place the thermal pad on the module correctly.

Best Wi-Fi Adapter Chipset Recommendations

Chipset choice is the biggest factor in adapter performance. Intel, Qualcomm, MediaTek, and Realtek lead the field. Each has strong and weak points. Pick one that fits your PC hardware.

Intel AX200 is still a solid Wi-Fi 6 option. Intel AX210 adds Wi-Fi 6E support. On the other hand, Intel BE200 suits those moving to Wi-Fi 7. Qualcomm FastConnect shines in mobile gear.

MediaTek Filogic 380 is a strong Wi-Fi 7 router platform. Realtek RTL8852AE is a budget Wi-Fi 6 adapter. But Realtek driver updates sometimes lag. So gamers should pick Intel or Qualcomm.

Wi-Fi Signal Strength, Coverage, and Interference Management

Signal strength is the most visible sign of wireless quality. But it is not enough on its own. You must also measure signal quality, interference, and packet loss. These factors tie directly to your adapter’s receiver sensitivity.

Coverage area depends on frequency band, antenna design, and the environment. Wall material, furniture, and electronics affect the signal heavily. Your PC case position also changes signal pickup.

Now let us look at signal measurement methods and coverage boost options.

Signal Strength Measurement: dBm and RSSI Scale

You measure signal strength in dBm. This value is a negative number. -30 dBm is a very strong signal, for example. -90 dBm shows the link near its dropout point.

RSSI (Received Signal Strength Indicator) is the device-reported version of this value. Windows WLAN AutoConfig service provides this data. Signal-to-noise ratio (SNR) also defines quality. A higher SNR is always better.

If you ask whether -50 dBm Wi-Fi signal is good, yes, it is quite good. But the value should stay steady. If it swings, you have a problem. This swing may come from hardware or the environment.

How Walls and Objects Affect Signal Absorption

Each material absorbs radio waves to a different degree. Concrete walls weaken the signal a great deal. Drywall has a smaller effect. Metal surfaces block the signal almost fully.

The RF attenuation factor shows how much a material cuts the signal. Concrete walls cause 15–20 dB loss on 5 GHz, for instance. That cuts range in half.

Mirrors, fridges, and washing machines also reflect the signal. This creates reflection and multipath fading. Speed drops and delay grows as a result.

Among household items that block Wi-Fi, metal cabinets, aquariums, and thick bookshelves cause the most harm. Move these objects out from between your router and PC. Keep your PC case away from metal barriers too.

Hardware Fixes to Boost Wi-Fi Coverage

Many paths can widen coverage. The simplest is an adapter with external antennas. A mesh Wi-Fi system also works well. These systems are now low-cost.

Mesh network topology lets multiple access points talk to each other. This way, you cover every corner without gaps. Tri-band mesh systems use a separate band for wireless backhaul.

A powerline adapter sends the network over your home’s electrical wiring. This helps in buildings with thick walls. But it depends on your wiring quality. It is still a useful alternative to Ethernet cables for desktop computers.

An access point only provides wireless access, unlike a router. A router also directs network traffic. Adding a second access point makes sense in large homes. This works well especially for upper floors.

• Set up a mesh Wi-Fi system.
• Use an adapter with external antennas.
• Try a powerline adapter.
• Add a second access point with Ethernet backhaul.
• Move the router to a central spot.
• Remove old devices from the network.

Wi-Fi Security: WPA3, Hardware Firewall, and Network Protection

Wireless network security is a topic most users skip. An open network puts all your personal data at risk, though. Someone on your network can also carry out illegal acts. That puts your PC hardware at risk too.

Modern security protocols reduce these risks. WPA3, with SAE authentication, resists password-cracking attacks. A hardware firewall also adds another layer.

Now let us go through security steps one by one.

WPA2 vs WPA3: The Difference and Hardware Support

We have used WPA2 widely since 2004. It protects data with AES encryption keys. But WPA2 can fall to brute force and KRACK attacks.

WPA3 is far stronger, however. SAE handshake makes offline password guessing hard. 192-bit encryption also adds protection on enterprise networks.

How do you tell if a device supports WPA3? Look for the WPA3 option on the router box or web interface. Old devices only support WPA2. You can use mixed mode in that case.

Guest Network, SSID Hiding, and MAC Filtering

A guest network isolates your visitors from the main network. They cannot reach your files or other devices. You can also set a bandwidth cap for the guest network.

SSID hiding stops your network name from broadcasting. But this alone does not secure your network. Hidden network names show up easily with packet analysis.

MAC address filtering lets only specific devices connect. This protection is limited too. You can easily spoof a MAC address.

Think of these methods as layered security. None is enough on its own. Together, though, they add deterrence. With a hardware firewall, you build a strong defense.

Hardware Firewall and Network Segmentation (VLAN)

A hardware firewall filters network traffic at the hardware level. You often see these devices in corporate networks. Advanced home routers also have basic firewall features.

With network segmentation (VLAN), you isolate devices. For example, you place IoT devices in a separate VLAN. A security breach cannot then spread to other devices.

Your router must support this setup. You also need management software or a web interface. Open-source tools like OpenWrt offer flexibility here.

Wi-Fi Performance Problems and Hardware Fixes

Dropouts, slow speeds, and high ping are the most common wireless issues. Most stem from hardware causes.

But do not ignore software factors. Driver updates and OS settings make a big difference, especially.

Thermal throttling, router CPU, and RAM bottlenecks are the top hardware culprits. You also use special tools to spot speed bottlenecks. These tools help you pin down the source.

Now let us fix these problems step by step.

Is Wi-Fi Dropout a Hardware Issue? Thermal Throttling and Router CPU/RAM

Connection drops often stem from router overheating. Router CPU and RAM strain under heavy traffic. Software bugs also cause dropouts. But first, check the hardware temperature.

Feel the router’s heat. If it feels too hot to your hand, add a cooling fix. A metal stand may serve as passive cooling. Use a small fan for active cooling.

Also, watch the router’s CPU usage. If it stays at 100%, you need a new device. The same holds for RAM. You can view these values in the web interface.

To test if Wi-Fi dropouts are hardware-based, connect with different devices. Drops on all devices point to the router. Only one device points to the adapter. Update or swap the adapter in that case.

Speed Bottleneck Detection with iperf and Wireshark

A speed bottleneck means your network cannot reach its full potential. Use the iperf tool to spot this. iperf runs a data flow speed test between two devices.

Connect two computers to the same network. Run an iperf server on one and a client on the other. Then compare the throughput you get with your internet speed. This test shows the bottleneck in your local network.

Wireshark offers deeper analysis as a packet analyzer. You can see packet loss, jitter, and retransmissions. This data clarifies the source of the issue. You then know if hardware or software is at fault.

Wi-Fi Adapter Overheating and Cooling Fixes

USB Wi-Fi adapters heat up the most. Heat builds up due to the small form factor. Heavy data flow also spikes chip temperature fast.

An overheated adapter drops speed via thermal throttling. You may also see connection drops. Passive cooling may be enough to fix this.

Stick a small heat sink onto the adapter. Also, plug it into a spot with free airflow. Use a USB fan for active cooling if needed.

You see this problem less on PCIe cards. The large card surface spreads heat out. Still, check airflow inside your case. Add case fans if needed. This extends the life of all your PC hardware.

Further Reading on Wi-Fi Standards and Security Protocols

This section helps you grasp the tech behind Wi-Fi more deeply. It focuses on standards, security, and channel control. These sources offer trusted and current information on the topic.

• Cisco – 6 GHz Band and Performance Gains: Covers new spectrum gains and low delay from the 6 GHz band.
• Dell – Wireless Network Standards Timeline: Summarizes all IEEE 802.11 family standards in order and their key traits.
• Alliance – Next-Gen Wireless Certification Process: Explains how IoT devices on 20 MHz channels benefit from the new cert.

FAQ on Wireless Network Hardware and Standards

Conclusion: Hardware-Focused Wi-Fi Investment in 2026

This guide covered many topics, from wireless basics to the newest hardware standards. You now hold all the information you need to invest wisely.

First, assess your current PC hardware. An old router or adapter chokes your internet speed. Next, build an upgrade plan based on your needs. This plan must include motherboard, M.2 slot, and PCIe slot fit.

Keep in mind, the priciest device is not always the best. The right chipset, form factor, and placement matter far more. Security and thermal care also make a big long-term difference.

Hardware Upgrade Guide by Priority

1. Check your router: replace it if it is not Wi-Fi 6 or higher.
2. Install a PCIe Wi-Fi card in your desktop.
3. Upgrade your laptop’s M.2 card to Wi-Fi 6E or 7.
4. Set up a mesh Wi-Fi system if coverage is weak.
5. Move network security to WPA3.
6. Add cooling fixes to solve thermal issues.

Follow these steps, and your wireless experience will visibly improve. You will also make a future-proof hardware investment.
