How to Install GNS3 VM 2.2 (2.2.34) on openSUSE Leap 15 (15.4)

In this article, we will examine how to set up and use GNS3 VM 2.2 (2.2.34) in order to use Cisco IOU devices more stable and performance or to create all your projects on a single machine in the openSUSE Leap 15 (15.4) distribution.

How to Install GNS3 VM 2.2 on openSUSE Leap 15

How to Set Up GNS3 VM (Virtual Machine) 2.2.34 on openSUSE Leap 15.4

GNS3 is a free advanced networking software often used for Cisco exams. You can create various network designs by emulating Cisco’s IOS Router network devices. You can use not only Cisco’s devices but also network devices from other 3rd party manufacturers in the virtual environment.

Normally, IOS devices are sufficient for entry-level network designs, but when you need to use a Firewall device such as Cisco ASA in your more advanced projects, you may need to use the GNS3 server software.

For your more advanced Switching projects, you can use all the features of a Layer 2 Switch only with IOU images. We recommend configuring the GNS3 VM on a powerful PC so that you can run IOU images more efficiently.

Requirements

You can use the GNS3 virtual machine in the openSUSE Linux distribution, but you must have virtualization software installed on your system. Since VMware Workstation is the most widely used software, we will use this software in our article. Before starting the installation steps, install the necessary software on your system by following the guides below.

How to Download and Install GNS3 VM

After installing GNS3 and VMware Workstation, which are the necessary software for GNS3 VM, you can download the OVA file from the developer website and start the import process quickly.

   Step 1

To download the GNS3 VM.ova file to your Linux computer, visit https://www.gns3.com/software/download and then click the GNS3 VM link.

GNS3 VM Download

   Step 2

According to the virtualization software installed on your system on the Download GNS3 VM website, click the Download button in the VMware Workstation and Fusion title and download the zip file to your computer.

VMware Workstation and Fusion

   Step 3

After downloading the GNS3 VM.zip file, navigate to its location and execute the “unzip GNS3.VM.VMware.Workstation.2.2.34.zip” command in the terminal to extract the archived file to the folder.

unzip GNS3.VM.VMware.Workstation.2.2.34.zip

Extracting Zip File to Folder

   Step 4

After extracting the OVA file to the folder, open VMware Workstation 16 Pro and click File / Open from the tool menu.

Opening a Virtual Machine

   Step 5

When the Open Virtual Machines window opens, select the OVA file and open it.

Selecting the GNS3 VM.ova File

   Step 6

To import the GNS3 virtual machine on Workstation, leave the relevant location at the default and click the Import button.

Storing the New Virtual Machine

   Step 7

Wait while the GNS3 virtual server is being imported into the Workstation program.

GNS3 VM Import

   Step 8

Before running the GNS3 server, upgrade the hardware version and adjust the virtual processor and memory settings depending on the performance of your host PC. Then click Start up this guest operating system to start the virtual server.

Running the GNS3 Server

   Step 9

After the GNS3 VM starts, you can see the IP address that the Workstation software automatically gets from the DHCP service. Use the ping command in the terminal to test the connection between your host computer and your virtual server.

Testing GNS3 Server's Network Connection

   Step 10

When the GNS3 VM is ready, open the GNS3 software and click Help / Setup Wizard from the tool menu. Select Run appliances in a virtual machine in the setup wizard and click Next.

Run Appliances in a Virtual Machine

   Step 11

In the GNS3 local server connection settings, select the Host Binding IP address according to the virtual server IP block and continue.

Changing the Host Binding IP Address

   Step 12

After a successful connection to GNS3 Server, click Next.

GNS3 Server Connection Successful

   Step 13

After choosing one of the software you have imported the GNS3 VM.ova file, configure the vCPU setting to 2 and the virtual memory size to 2 GB.

Choosing VMware Virtualization Software

   Step 14

After configuring the server type, check the settings in the summary window and close the wizard.

Closing the GNS3 Setup Wizard

How to Add Cisco Router IOS

After making the GNS3 VM connection, you can add a new IOS Router and add the network device you added to the workspace and create network topologies.

   Step 1

Click Edit / Preferences from the tool menu to open the simulator program’s preferences to open the Cisco IOS add wizard.

Opening GNS3 Preferences

   Step 2

Select Dynamips / IOS routers from the settings on the left panel and click the New button to open the IOS wizard. In the window that opens, select Run this IOS router on the GNS3 VM to add the router to the virtual server and click Next.

Run this IOS router on the GNS3 VM

   Step 3

To add an IOS image you downloaded to your computer, click the Browse button and select the file.

Adding Router IOS

   Step 4

Click Yes to decompress the IOS image and wait for it to be uploaded to the server.

Uploading IOS Image to Server

   Step 5

Edit the name and platform of the new IOS Router and click Next.

Router Name and Platform Configuration

   Step 6

Configure the virtual memory size according to the RAM capacity for the Router to work efficiently on your computer and click Next.

Configuring the Router's Memory Size

   Step 7

You can choose the default network adapters from the empty slots for each Router you will add to your project. For example, only the FastEthernet interface is installed by default, but you can add GigabitEthernet or Serial Interface additionally.

Editing Network Adapters

   Step 8

To prevent IOS images from using 100% of your computer’s processor, you need to set an Idle-PC value. Click Idle-PC Finder to find a suitable value for the IOS device you added.

Finding Idle-PC Value

   Step 9

To check whether the IOS image was added to the virtual server, you can check the Server value in the device information section.

Checking IOS Location

How to Create a New Project

After installing GNS3 VM on openSUSE and adding a new IOS device, you can now make network designs and observe how computers in the network environment communicate.

   Step 1

You can use CTRL + N keys or click the project icon from the tool menu to start a new project in GNS3 software.

Creating a New Network Project

   Step 2

Expand the Routers category and drag and drop two c7200 devices into the workspace.

Adding a Cisco Router to the Workspace

   Step 3

Activate the cabling option from the left panel, and then connect one end of the network cable to the FastEthernet0/0 port of R1 and the other end to R2.

Connecting Two Routers with FastEthernet Port

   Step 4

To run all the network devices you have added to the GNS3 program, click the green arrow in the tool menu and click Yes in the window that opens.

Operating Network Devices

   Step 5

Execute the commands below in the CLI prompt to assign and configure IP addresses to the FastEthernet interfaces of the R1 and R2 devices. Finally, use the ping command to test the network connection between the two Routers.

R1# conf t
R1(config)# interface fastethernet 0/0
R1(config-if)# ip address 192.168.1.1 255.255.255.0
R1(config-if)# no shutdown
R1(config-if)# end



R2# conf t
R2(config)# interface fastethernet 0/0
R2(config-if)# ip address 192.168.1.2 255.255.255.0
R2(config-if)# no shutdown
R2(config-if)# end

Configuring Router Interfaces

How to Disable GNS3 VM

If you want to disconnect the GNS3 from the GNS3 server, you must disable the GNS3 VM in the program’s preferences.

   Step 1

After opening Edit / Preferences from the program’s menu, select the GNS3 VM from the left panel and then uncheck the Enable the GNS3 VM option and click OK.

Disabling the GNS3 VM

   Step 2

After disabling GNS3 VM, you need to run IOS devices on localhost. To do this, open Help / Setup Wizard and select Run appliances on my local computer from the server configuration options and click Next.

Run Appliances on My Local Computer

   Step 3

Change the Host Binding value in the local server configuration to localhost this time and continue.

Configuring Local Server Connection

   Step 4

After the local GNS3 server connection is successfully established, check the settings in the summary window and close the wizard.

Checking Local Server Connection

   Step 5

When you make the local server settings, you need to delete the c7200 Router IOS that you added to the GNS3 server. If you see that the Server setting of the c7200 device is VM in the IOS Routers section, select the device and click the Delete button.

Deleting IOS Router from GNS3 Server

   Step 6

When you delete the device on the server, open the template wizard again and this time select Run this IOS router on my local computer and click Next.

Run this IOS router on my local computer

   Step 7

You can check that the Server setting of the IOS device you added is localhost. In this way, you can run your network devices on the local server without the need for a GNS3 VM.

Closing the IOS Wizard

How to Delete the GNS3 Virtual Machine

When you no longer want to use a GNS3 Server on your openSUSE computer, we recommend deactivating it and then completely deleting it from the Workstation program.

Open VMware Workstation 16 and select the virtual computer you want to delete from the Library panel, then right-click on it and click Manage / Delete from Disk and confirm the complete deletion from your system disk in the question window that opens.

Deleting the GNS3 Virtual Machine

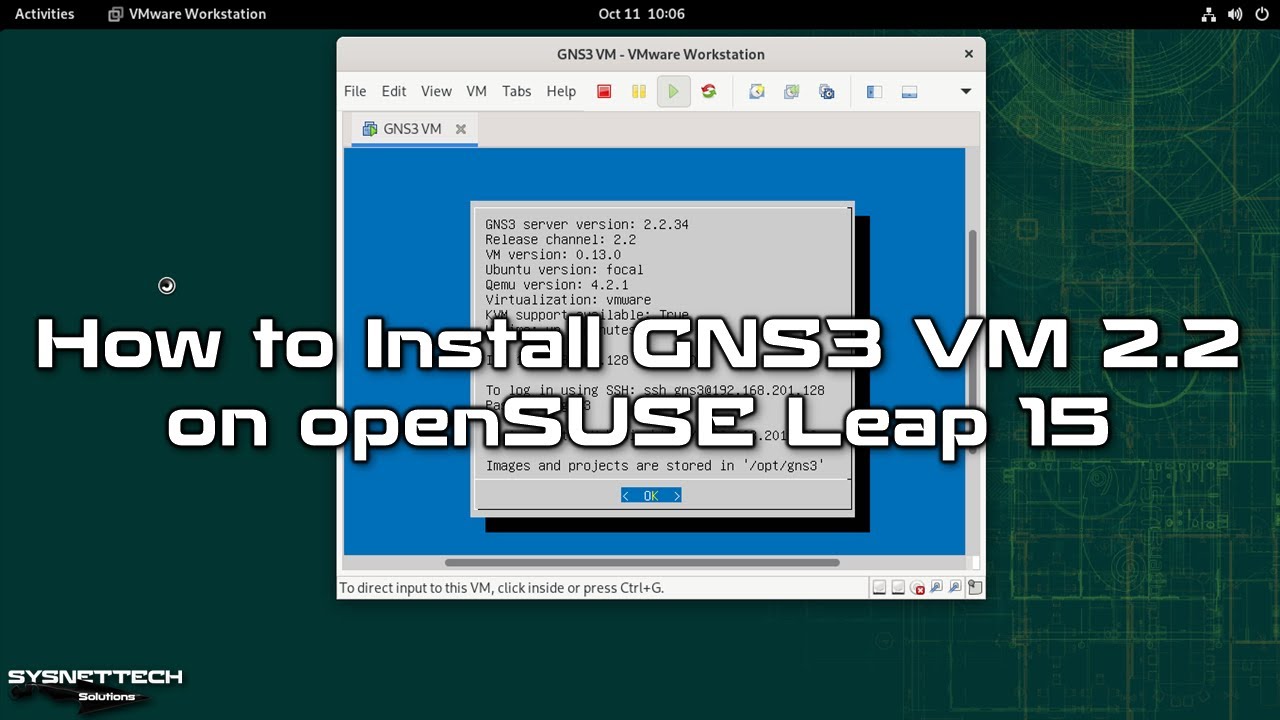

   Video
