How to Create Virtual Machine in VMware ESXi

In this article, we will examine how to create a new virtual machine for installing Windows, Linux or macOS on VMware vSphere ESXi.

How to Create Virtual Machine in VMware ESXi 6.7U2

How to Create / Install a New Virtual Machine in VMware vSphere ESXi 7.0

Creating a new VM with VMware ESXi server is very easy. If you have used the VMware virtualization program before, you do not have to worry about creating virtual machines.

VMware ESXi is a server virtualization software. Once you have installed VMware ESXi on a physical server, you can use the server more efficiently. As a result, VMware ESXi runs on a physical server and acts as a layer between VMs and hardware.

In this article, we will set up a VM for the operating systems to be used on VMware vSphere.

How to Configure Virtual Machine in vSphere

To create a new VM for Windows 7 on ESXi, follow these steps in order.

   Step 1

Run the server and connect to the server by typing the IP address in the Internet Explorer address line. On the login screen, type your username and password as shown below and click on the Log in button.

ESXi Login Screen

   Step 2

The first boot view of vSphere ESXi is as follows. To create a VM, click VMs from the options in the left pane.

Virtual Machines

   Step 3

In the Virtual Machines window, click the Create / Register VM button.

Create / Register VM

   Step 4

To create a new VM after the New VM window opens, select Create a new VM and click on the Next button.

Create a New Virtual Machine in vSphere

   Step 5

Type the name of the operating system you are going to run, and click Next when you have configured the Guest OS Family and Guest OS Version sections.

Guest OS Version

   Step 6

By default, DataStore1 will be selected because a physical disk is installed in the server. Click Next to proceed to the next step.


   Step 7

You can configure the VM created on vSphere ESXi in the Customize Settings window. For example, to install the operating system in a VM, you can add the ISO file from CD/DVD Drive 1.

VM Settings

   Step 8

The summary information of the Windows 7 VM is shown below. You can close the window by clicking on the Finish button.

Virtual PC Settings

   Step 9

After creating the machine in the server, click on the VM.

Editing Windows 7

   Step 10

Start the VM by clicking Power on. You can also open the console screen by clicking on the Windows Logo as below.

Starting VM

   Step 11

The VM turned on, but an operating system setup did not start. Because we did not add an ISO file to the VM.

Boot Screen

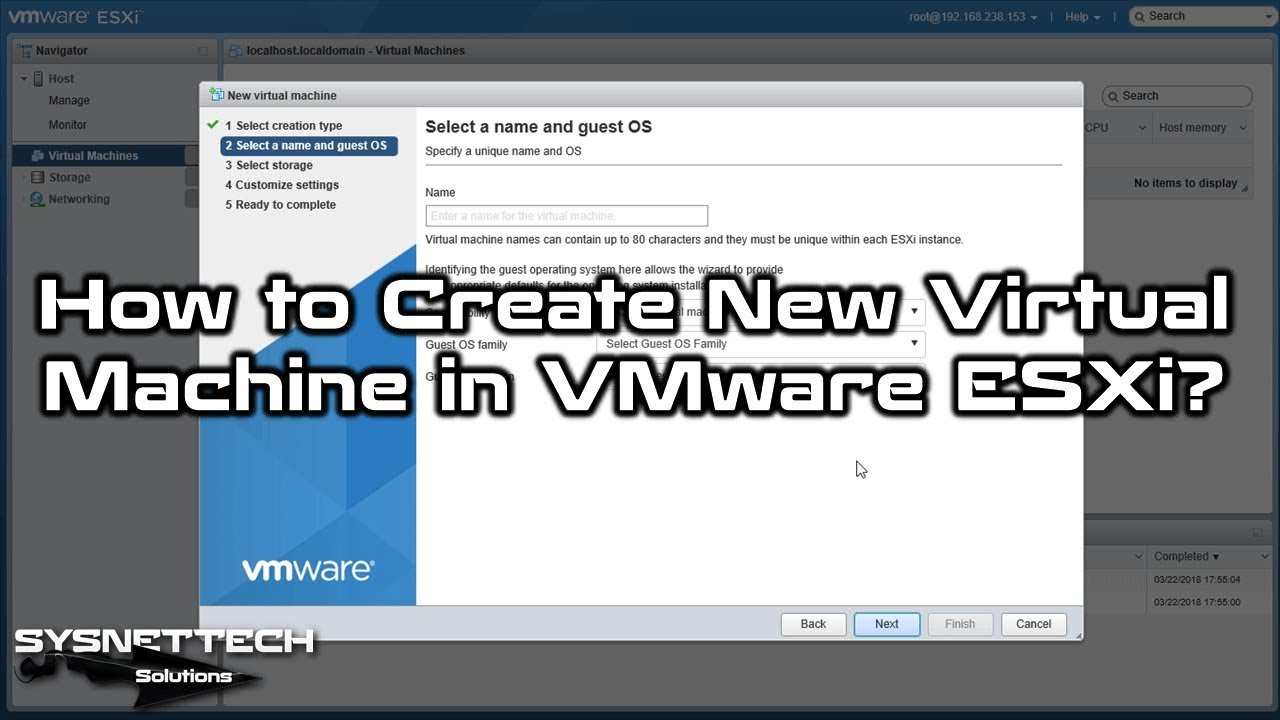

For VM setup and configuration on VMware ESXi in VMware Workstation, you can watch the following video and also subscribe to our YouTube channel to support us!

   Final Word

In this article, we have reviewed how to create a VM in vSphere. In the next post, we will be reviewing how to copy ISO files into vSphere. Thanks for following us!
